Description

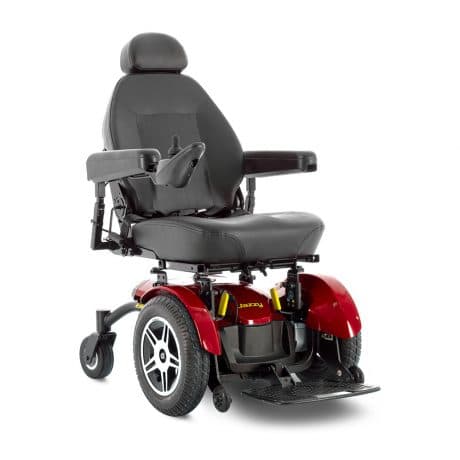

The Jazzy Elite HD Power Chair is a heavy duty chair with a weight capacity of 204 kg, ideal for the heavier user. The Jazzy Elite features a two front wheel drive. Its design optimises weight distribution. Along with 14″ solid tyres, the Jazzy Elite offers superior traction – perfect for outdoor use.
The chair is joystick operated using a dynamic SHARK controller. This controller is designed to provide increased power, improved ergonomics, greater versatility and enhanced usability.
For maximum range, the Jazzy Elite HD is fitted with NF-22 batteries.
Specifications:
Maximum speed: Up to 6.4km/h
Ground clearance: 7.6cm at bottom of base
Turning radius: 61cm with front riggings
Overall length: 90.2cm without front riggings
Overall width: 61.6cm
Drive wheels: 35.6cm solid
Front wheels: 7.6cm solid anti-tips
Rear wheels: 15.2cm solid casters
Suspension: Limited
Drivetrain: Two-motor, front-wheel drive
Braking system: Intelligent braking (electronic, regenerative disc brakes)
Standard electronics: 60 amp controller, Dynamic Shark
Specialty controls: N/A
Battery charger: Off-board, 5 amp (standard)
Per-charge range: Up to 15.77km
Battery requirements: (2) 12 volt, deep cycle
Battery size: NF-22
Battery weight: 17kg each
Base weight: 44kg
Standard seat weight: 23kg (high-back)
Max. seat dimensions: 56cm width x 56cm depth
Warranty: 2 years / 1 year battery
User weight capacity: 204kg
Additional Accessories (sold separately)
High-back seat with solid seat pan
Cup holder
Rear basket
Oxygen tank holder
Cane/crutch holder
Walker holder
Oxygen tank holder
Cane/crutch holder
Walker holder
