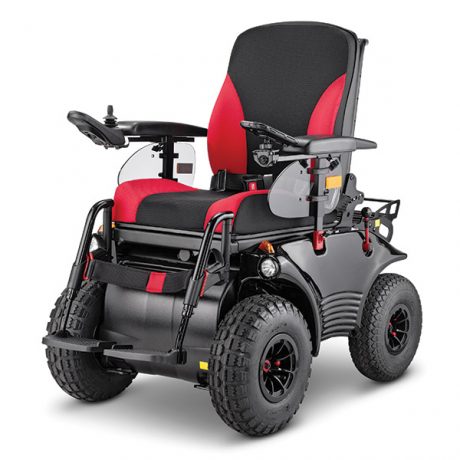

The Optimus 2 heavy duty power wheelchair is great on or off the beaten path. Whether you need to make a long trip around town or want to go off road, the Optimus 2 will take you there.

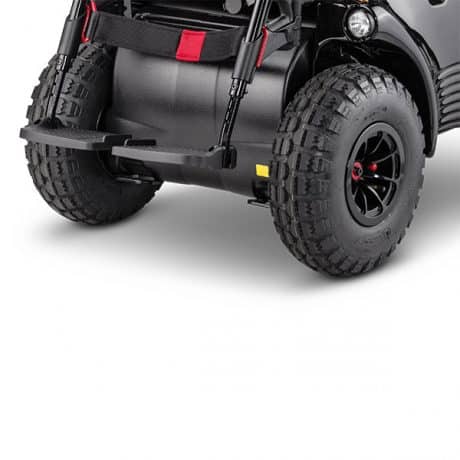

Big 360 x 120 mm front wheels make short work of kerbs, gaps and make boarding trains and buses easier.
Ride comfort and safety with a range of seating systems and options, without sacrificing manoeuvrability.
LONG RANGE BATTERY & POWERFUL MOTORS
The Optimus 2 chews the ground with its 950 watt transaxle motor & gearbox.
The Optimus 2’s big battery will tackle short trips or long distance. Drive up to 70kms with the 107 ah batteries on a single charge.
An independent wheel suspension system and terriffic climbing power are ideal for paved roads and challenging kerbs.
POWER SEAT TILT & POWER BACK RECLINE
Get the pressure relief you need with the Optimus 2’s 35° power seat tilt and 50° power backrest recline.
Tilt and recline systems have numerous health benefits, including reducing the risk of pressure injuries, reducing shear force on the base of the spine, oedema management, easier transfers and reduction of fatigue.
A tilt and recline system makes you more comfortable and reduces back pain, meaning you can be more productive and get more out of your day.
FRONT WHEEL DRIVE
Obstacle climbing ability is the strength of front wheel drive power wheelchairs. FWD also have great stability and weight distribution.
FWD power chairs manage tight corners well, as they have a shorter front end than other configurations. With rear wheel servo steer, the Optimus steers well.
FWD chairs are usually a smoother ride outdoors, due to having larger casters than mid wheel drive chairs.
SPORTY COLOUR SCHEME
Conquer the road in style.
The Optimus 2 heavy duty power wheelchair not only packs the grunt you need, it looks cool doing it.
Black anodised rims set off the bold red highlights to create a sleek, sporty look that stands out.
Just perfect to help you make a statement.
USER WEIGHT UP TO 150KGS
The Optimus 2’s combination of rugged engineering and powerful drive train mean it can take a user weight of up to 150kgs.
The adjustable seating system and independent suspension will make your ride comfortable and secure.
Choose from a range of seating systems.
|Seat width||38 – 56 cms|
|Seat depth||42 – 53 cms|
|Backrest height||55 cms/ 64 cms|
|Legrest length||38 – 52 cms/ 42 – 56 cms|
|Armrest height||19 – 25 cms/23 – 29 cms|
|Seat height – front||58/61/65 cms1|
|Overall length – with legrests||Approx. 116 cms|
|Overall length – without legrests||Approx. 103 cms|
|Overall width||68 cms|
|Wheel size front||360 x 120mm|
|Wheel size rear||320 x 100mm|
|Maximum obstacle climbing height||Approx. 110mm|
|Type of steering||Direct, rear wheel servo steer (forklift-style)|
|Turning radius||Approx. 120 cms|
|Driving range||50– 70 kms with 107 ah batteries2|
|Chair weight||Approx. 150 kgs, no batteries|
|Maximum client weight||150 kgs|
|Motor power rating||950 watt transaxle motor gearbox|
|Maximum gradient||18 degrees|
|Mechanical seat tilt||+7 to + 22 degrees/ +20 to + 35 degrees|
|Power seat tilt||+7 to + 22 degrees/ +20 to + 35 degrees|
|Mechanical backrest||0 to + 30 degrees|
|Power backrest recline||-10 to + 50 degrees|
ISO7176 strength & durability standards, ISO7176-19 crash test requirements
|Mechanical tilt-in-space||7-22° / 5-20° / 20-35°|
|Back angle electric||-10° to +50°|
1 Depending on seat configuration
2 Distance will be affected by client weight, terrain and battery condition
Dimension tolerances ± 10 mm ± 2°
Data subject to changes
