The Meyra XXL and XXL HD don’t back down.
Built to move users up to 200 kg (XXL) or 250 kg (XXL HD), with a great stable and sturdy design, the XXL and XXL HD are tough.
Thanks to the power tilt-in-space and recline function, as well as the choice of powered separate or centre mounted footrests, you can be tough and comfortable.

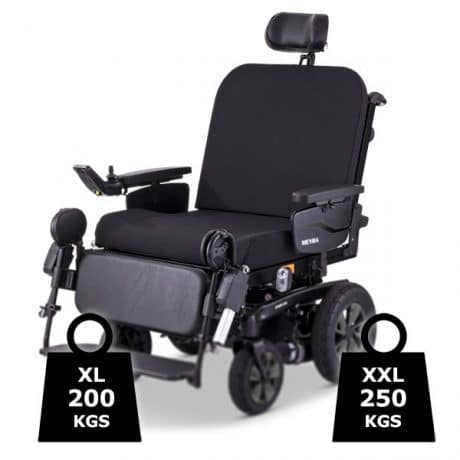

USER WEIGHT UP TO 250KGS
The XXL & XXL HD are perfect bariatric wheelchairs—taking a user weight of up to 200 kg for the XXL model and a user weight of up to 250 kg for the XXL HD.
The XXL & XXL HD’s powerful motors mean you won’t sacrifice speed and mobility. Choose from either 2 x 300W motors or 2 x 350W motors to power you through your day.
POWER SEAT TILT & POWER BACK RECLINE
Get the pressure relief you need with the XXL & XXL HD’s 18° power seat tilt and 50° power backrest recline.
Tilt and recline systems have numerous health benefits, including reducing the risk of pressure injuries, reducing shear force on the base of the spine, oedema management, easier transfers and reduction of fatigue.
A tilt and recline system makes you more comfortable and reduces back pain, meaning you can be more productive and get more out of your day.

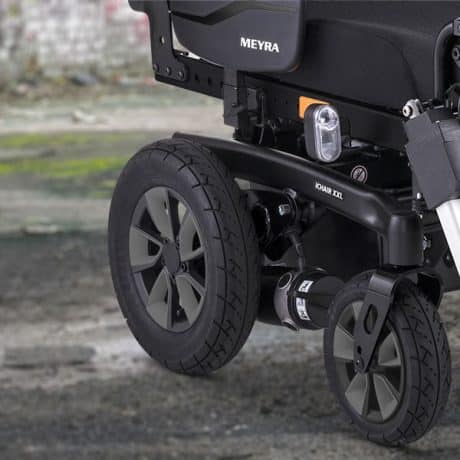

REAR WHEEL DRIVE
With the XXL & XXL HD’s rear wheel drive configuration, you don’t need to worry about what’s happening behind you, as most of the chair is directly below or in front.
Rear-wheel drive chairs have a smooth ride thanks to larger casters.
Rear-wheel drive chairs have the highest top speed of all configurations, and are easier to handle at higher speeds.
TOUGH, BUT WITH LOTS OF OPTIONS
The XXL & XXL HD are built from reinforced components for strength, and stability, with a wide range of standard and power options.
Meyra give you lots of option too, such as the power tilt-in-space and recline function, as well as the choice of powered separate or centre mounted footrests.
Tough but comfortable.

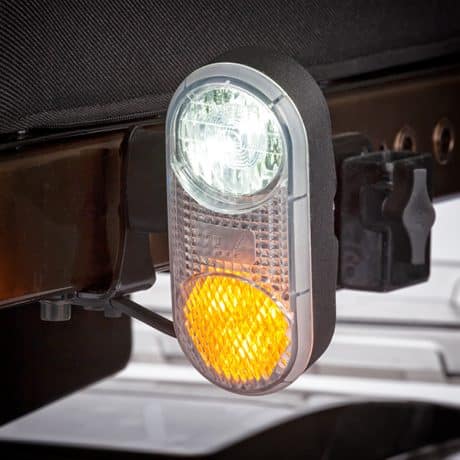

LED LIGHTING SYSTEM
The XXL & XXL HD’s LED lighting system means you can light your way, night or day.
LEDs are bright, long lasting and power efficient, so they won’t drain your battery.
A power chair lighting system improves visibility, both for yourself and others, giving you a safer ride.
5 FRAME AND ACCENT COLOURS
Make the XXL & XXL HD your own!
There’s five frame and accent colours to choose from: polar white, magic blue, red metallic, lemon reflex and sun yellow.
The colour accented sections are the seat tubes, back tubes, side panels, two piece legrest and rim inserts.
|Seat width||530 – 700|
|Seat depth||430 – 600|
|Back rest height||530 – 570|
|Leg length adjustment||370 – 510|
|Armrest height adjustment||170 – 280|
|Front seat height options
(with /without cushion)
|420 – 470 / 460 – 560 / 530 – 630|
|Length with footrests||1,150|
|Length without footrests||850|
|Height without headrest||1,020 – 1,150|
|Transport height minimum||650|
|Front wheel size||260 x 70 (10“ x 2 3/4”)|
|Rear wheel size||356 x 75 (14“ x 3”)|
|Max. obstacle height||60|
|Driving range with 70ah batteries||30 – 35|
|Empty transport weight min.||approx. 130 kg|
|Client weight max XL / XXL||200 kg / 250 kg|
|Driving speeds||6 kmh /10 kmh|
|Motor options||2 x 300W / 2 x 350W|
|Driving range max.||35 km|
|Permitted gradient||13 %|
|Electric tilt-in-space||0° to +18°|
|Mechanical tilt-in-space||0° to +10°|
|Power backrest recline||-10° to +50°|
|Mechanical backrest recline||-10° to +30°|
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
