Molift Smart 150 Portable Patient Lifter

Price:
$4,650.00
SKU:
10200
Quantity:
Find Out More
    1 300 734 862 Talk with an expert
    Visit our Store
    1 Mitchell St. Marrickville Sydney, Monday to Friday
    8:30am to 5:30pm

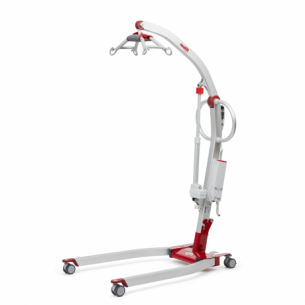

    Awarded for Design Excellence in Europe, the Molift Smart 150 is a lightweight, portable patient lifter designed to be easily wheeled and transported. It is ideally suited for use in home care, for travelling, transporting in a car or to be easily stored.

    With a lifting range of 27 – 168 cm (10.6" – 66.1") the Smart 150 provides an excellent maximum lifting height and at the same time gets low enough to facilitate lifting from the floor.

    The 4-point sling suspension is standard and guarantees the patient hoist gives a comfortable lifting position for the user with ample space around the head area thereby eliminating any risk of the head bumping into the suspension or the user swinging side to side.

    With the combination of sling and suspension, the user will slide into a natural, correct seating position, from lying to sitting and vice versa.

    The Smart 150 has a unique design with an excellent centre of balance and together with the small footprint makes it easy to manoeuvre even in tight spaces.

    The unit includes a Molift Battery and Molift Battery Charger.

    Available also is the Molift Smart Soft Travel case.  It is ideal for use when travelling, transporting or storing the Smart 150.  For airplane travel and other situations when bulk stowage is required, the Molift Smart Hard Travel Case is a suitable option.  Both cases are sold separately.

    Warranty on the Smart and all Molift lifters is 2 years.  Molift hand controls and batteries have a warranty of 6 months.

    FEATURES
    4-point suspension Standard 4-point suspension ensures comfortable and more spacious lifting position for the user.
    Lifts easily from floor Molift Smart has a large lifting span that allows lifting from the floor as well as high surfaces.
    Folds and unfolds easily Molift Smart folds and unfolds easily in 10 seconds without using any tools and can be separated into two parts where the heaviest part weights only 13 kg.
    Built in Software calculates when the lifter requires servicing
    Electric / Manual Lowering Functions
    Emergency Stop


    SPECIFICATIONS
    Lifting Capacity 150 kg
    Total Product Weight 26 kg
    Lifting Height Minimum 270mm / Maximum 1680mm
    Total Assembled Dimensions 1150 x 475 x 350mm
    Battery NiMH 14.4v - 2.2Ah

    For further technical information please select to download the brochure below.  Please contact us to arrange a demonstration.

    Molift Smart 150 (00:51)
    Molift Smart 150
    • Molift Smart 150
      Molift Smart 150
    • How to Transport a Molift Smart 150 in a Car
      To place a Molift Smart 150 in a car: Have a thick sheet hangi...
    • Learn how to lift from the floor to bed with a Molift Smart 150
      This video shows how to lift a user from the floor to bed with...
    • How to fold and unfold the Molift Smart 150 Mobile Hoist

    This product hasn't received any reviews yet. Be the first to review this product!

    Write your own product review

    Description

    Item no. 10200

    Service Software

    Included

    Material

    Aluminium, steel

    Total Weight

    26 kg (57 lbs)

    Weight when separated

    Part 1:13 kg (28.6 lbs) Part 2: 13 kg (28.6 lbs)

    Height

    132 cm (51.9")

    Length

    116 cm (45.6")

    Dimension folded

    116 x 47.5 x 35.5 cm (45.3" x 18,7" x 13.8")

    Leg Height

    11 cm (4.4")

    Width chassis/legs outer

    66 cm (25.9")

    Width open legs inner

    92 cm (36.2")

    Lifting Capacity

    150kg

    Lifting Height

    27 –168 cm (10.6" – 66.1")

    Lifting Interval

    141 cm (55.5")

    Lifting speed

    6 cm/ sec (2.4"/ sec)

    Battery

    NiMH 14.4 V – 2.2 Ah

    Battery charge time

    ca. 3 hours

    Rated performance

    40 lifts at: 75 kg and 50 cm (165 lbs and 19.5")

    Cleaning instructions

    Use pH-neutral cleaning agents. If disinfection is required, use isopropyl alcohol. Do not use abrasive or corrosive substances for cleaning.
