Molift Quattro Gantry Frame

SKU: 1600030

Description

The Molift Quattro is a freestanding traverse gantry offering a four post system.  This is the best option when the need for hoisting is temporary or the facility does not have a fixed rail system installed.  The Quattro gantry can be installed easily without any requirement for mounting additional fixtures to walls or ceilings. It is designed to be installed quickly and efficiently with one or two people. It is ideally suited to temporary hoist applications usually within the hospital or aged care environment.

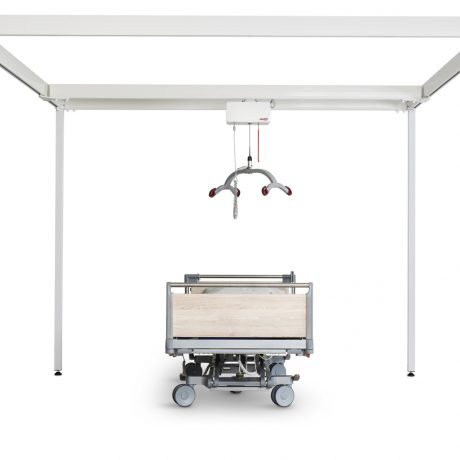

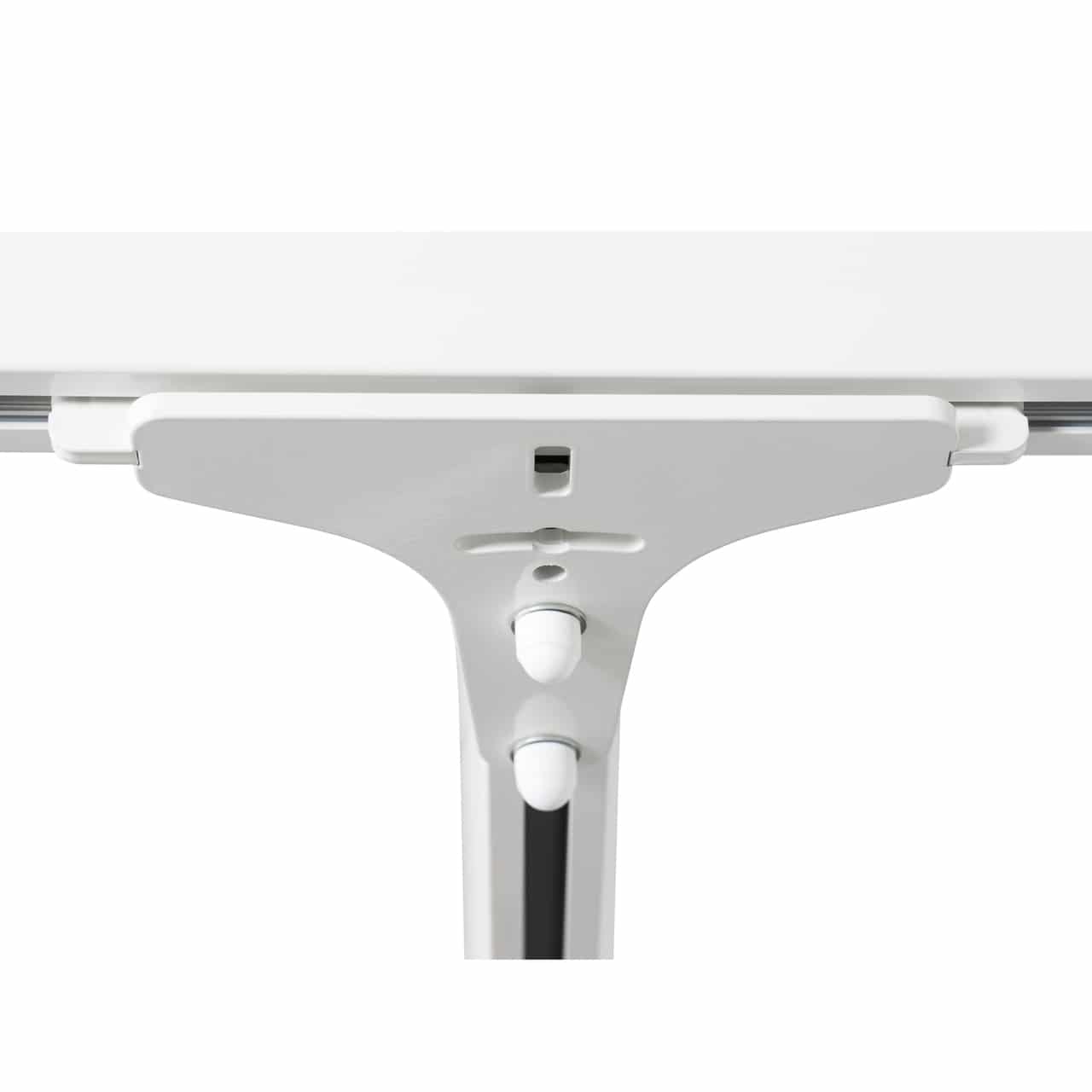

The traverse system consists of an aluminium frame and four steel posts which provide excellent stability and also covers the surface of the hoisting requirement, providing access in all lifting situations.  Together with the Molift Air or Molift Nomad and fitted with a sling, the Quattro solves all overhead lifting situations.  Lifting and Transferring from or to bed, floor, chair, wheelchair, toilet etc are all possible with this system.

Two Size Options: The lengths of the posts are fixed at 3m x 3m (part no 1600030) or 4m x 4m (part no 1600035).  The height is up to 2.45m (minimum 2.33m)

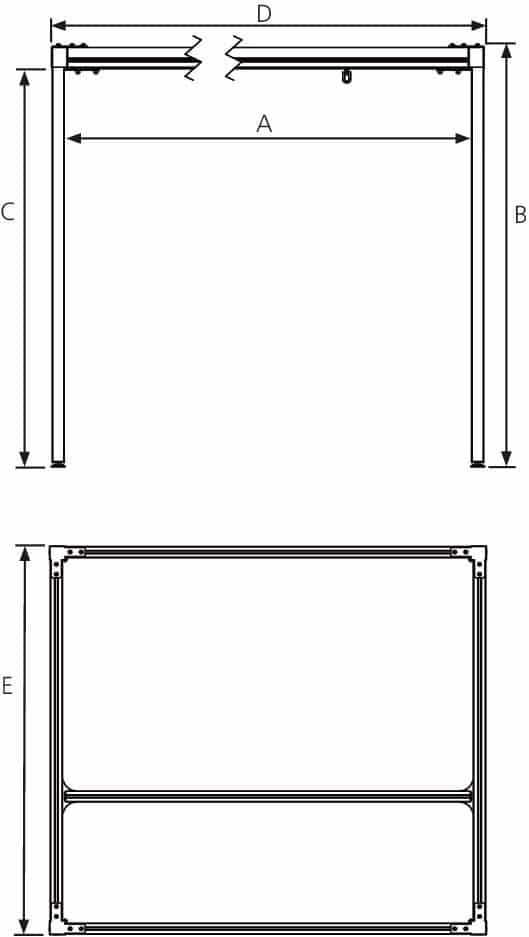

Specifications:
Length:
3m or 4m
Height: 2.33m – 2.46m (when using adjustable foot accessory)
Width: 3.16m – 4.16m

Total Weight:
3 x 3m: 110.95 kg
4 x 4m 131.55 kg
Part Weight: Boom: 4.2 kg/m
Leg with Adjustable Foot: 8.5 kg

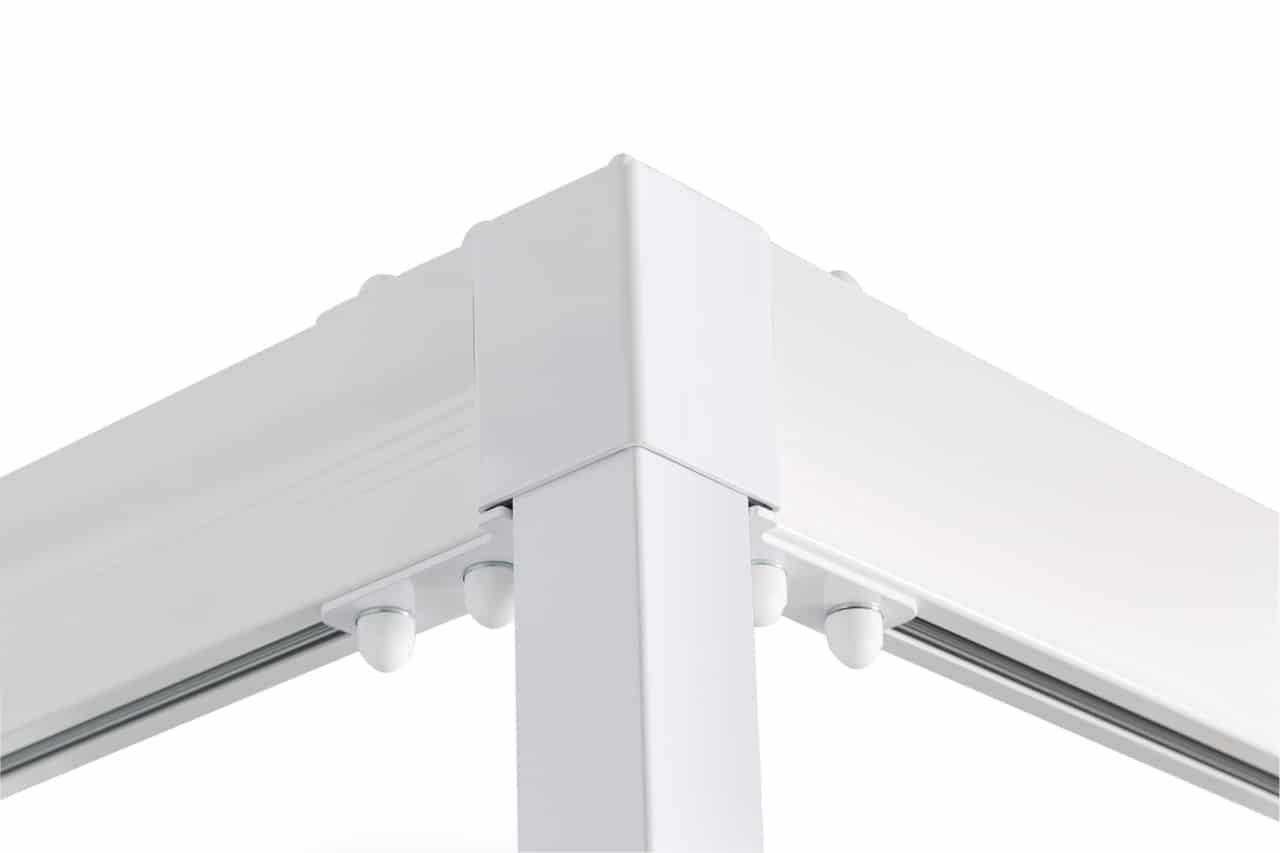

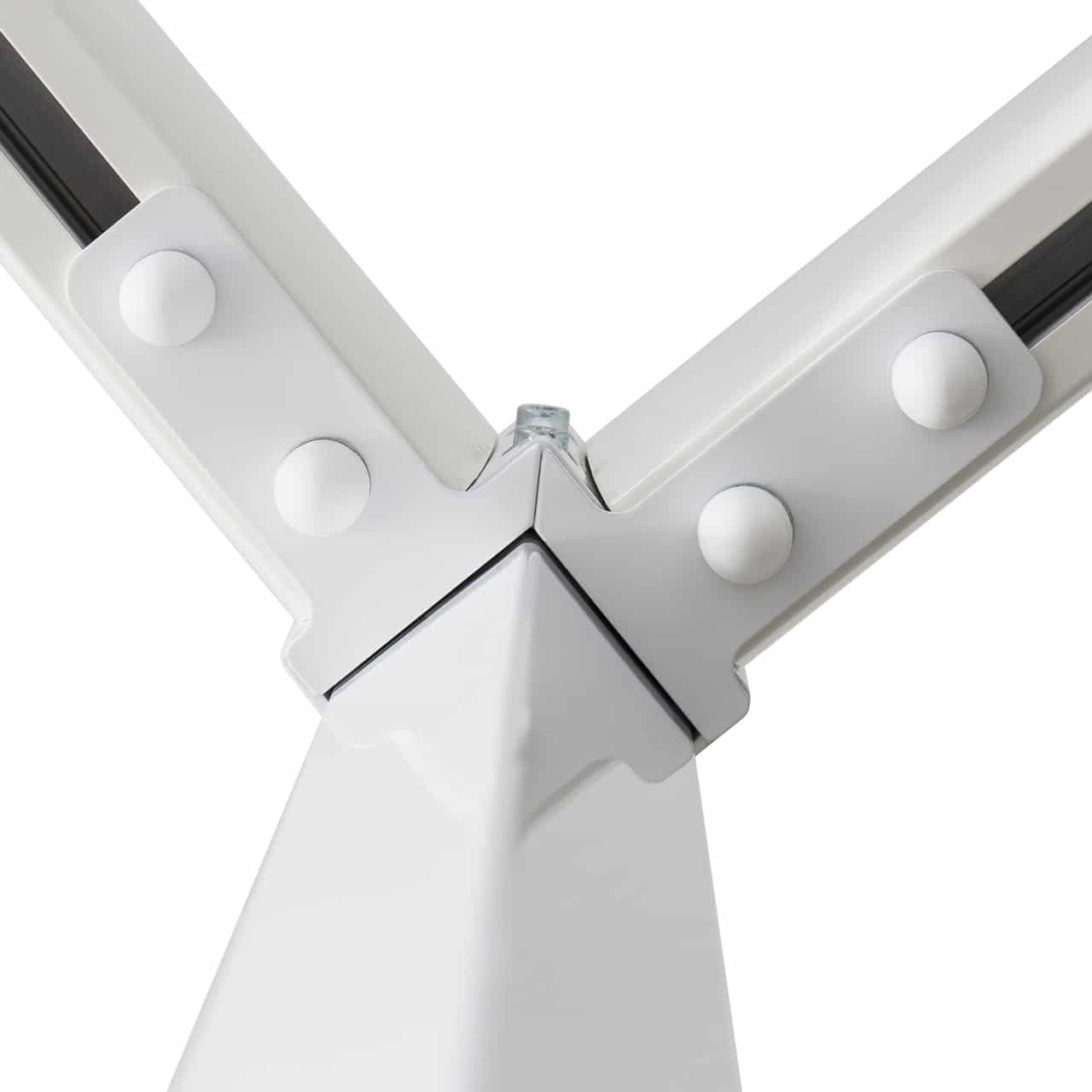

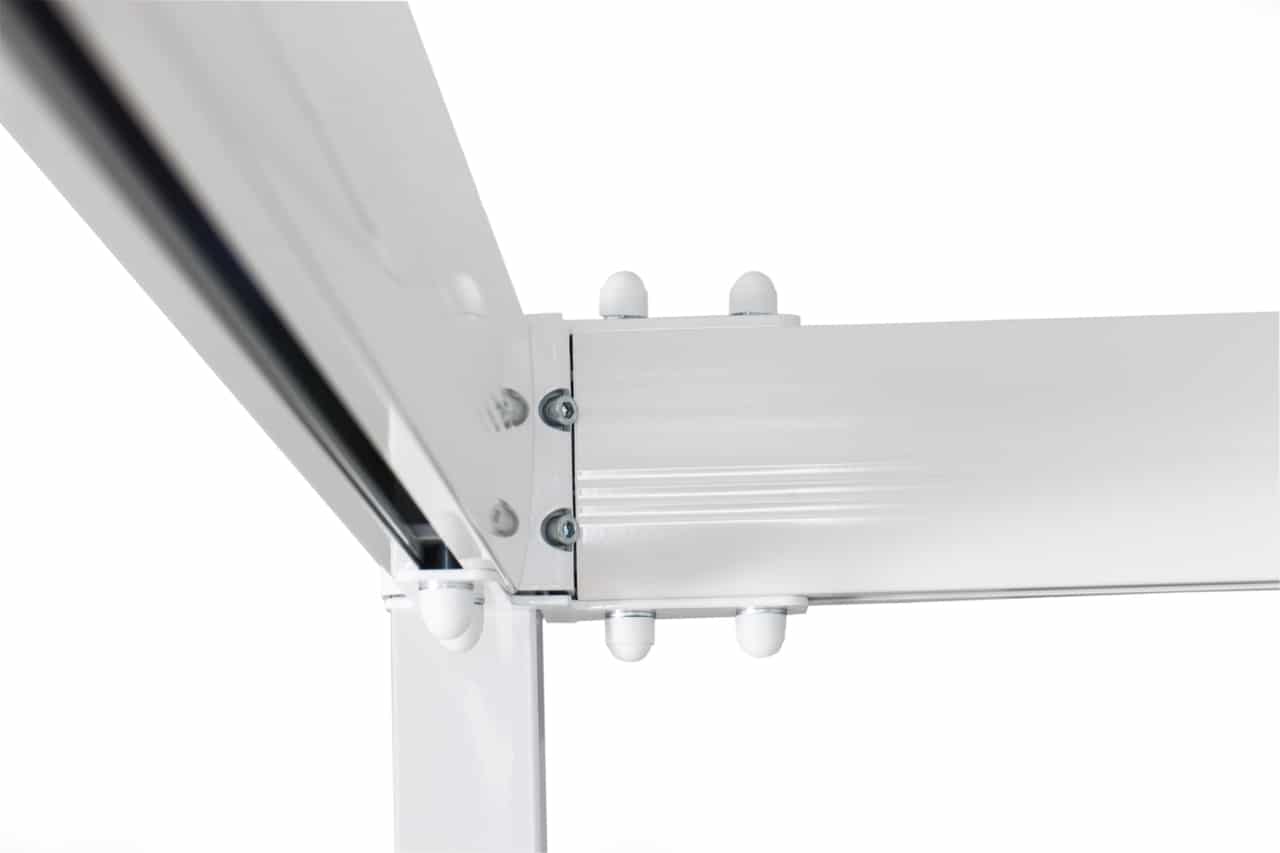

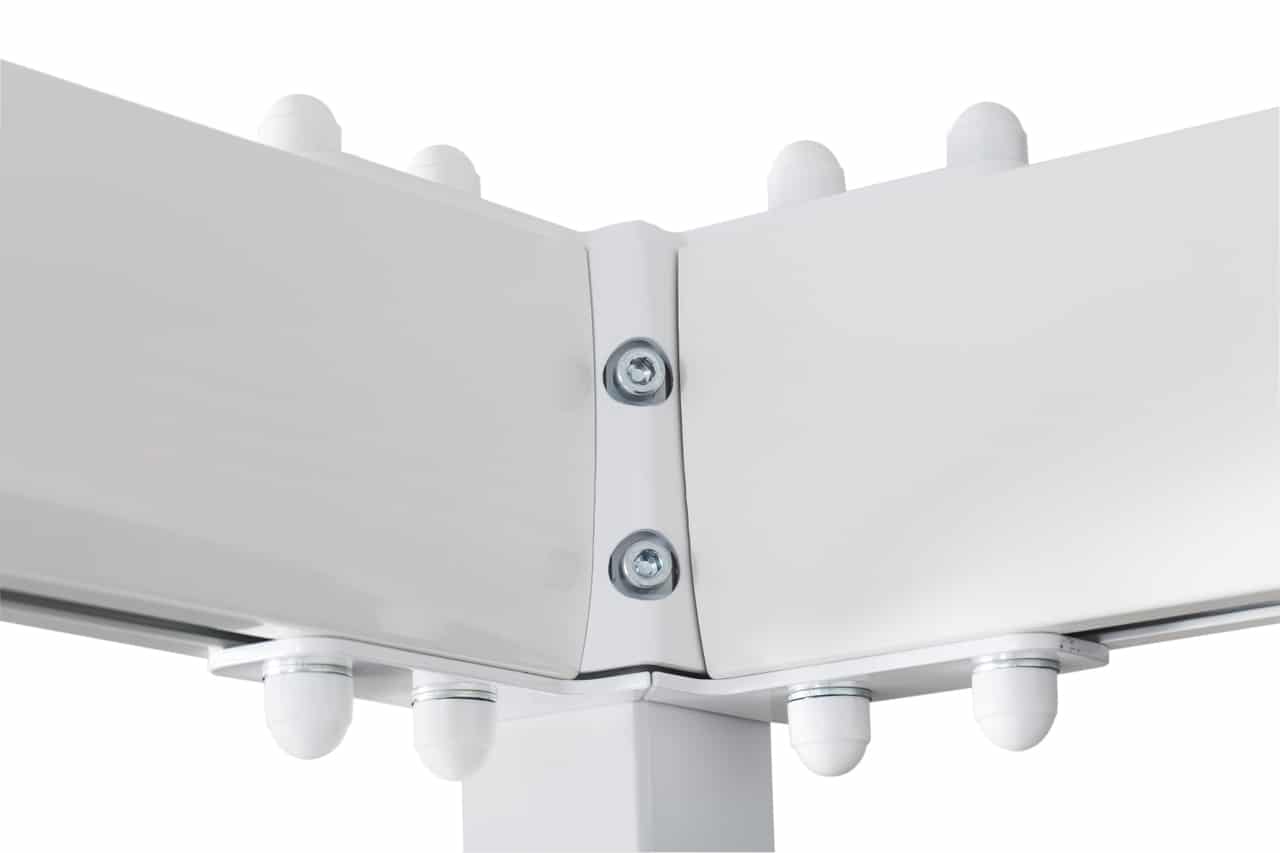

Corner: 27 kg

Maximum Internal Space: 3x3m: 2.18 x 3m
4x4m: 2.18 x 4m


Safe Working Load:
300 kg
Material: Steel, anodized aluminium, plastic
Expected Lifetime: 10 years

Accessories:
Height adjustable foot for each leg

Sold Separately:
Molift Air Hoist Motor
Molift Nomad Portable Ceiling Hoist Motor
Molift Nomad Cart
Molift Slings
